Cartoner for Lock Cartons – PMM
Tamper-evident sealing without the use of hot-melt adhesive.
- Model：P.MM
- Manufacturer：
Product features
Traditionally, carton lids have been sealed using resin-based adhesives. However, this method has involved various challenges, including the high cost of hot-melt systems, ongoing adhesive running costs, increased electricity consumption due to heaters, complex maintenance requirements, nozzle clogging caused by carbonized adhesive, and issues such as incomplete or pseudo bonding.
To address these issues, we have developed a cartoner compatible with the “Lock Carton” system developed by Marukin Printing Co., Ltd.With this system, the carton lid and body are completely locked together, causing the carton to break upon opening. This provides effective tamper evidence while simultaneously eliminating the challenges associated with hot-melt adhesive sealing. In addition, the system supports recent SDGs initiatives and environmentally conscious packaging.

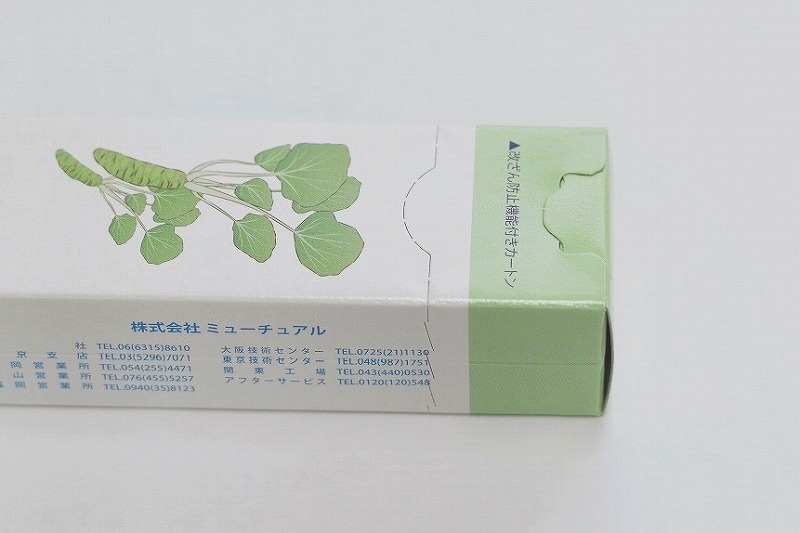

・Tamper-Evident Function, The carton is damaged if forcibly opened, clearly indicating tampering.

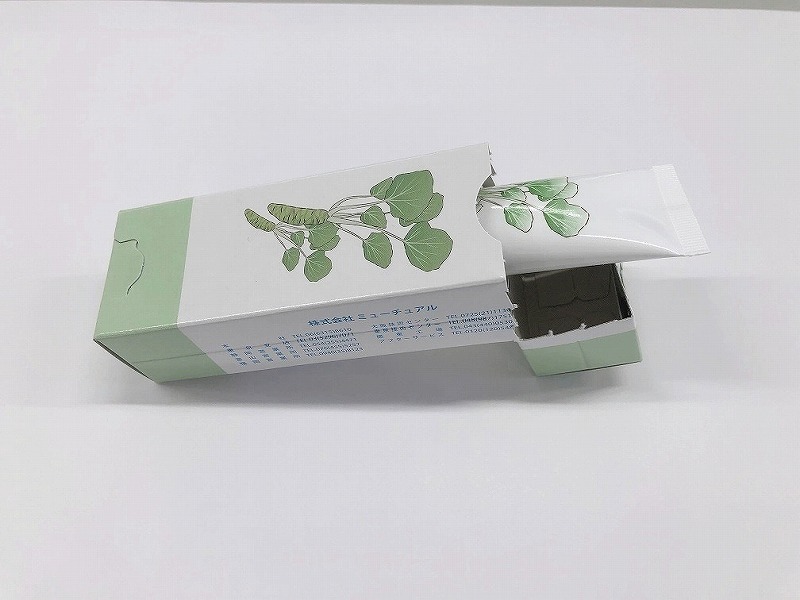

・Quick-Open Function, Allows easy and smooth product removal.

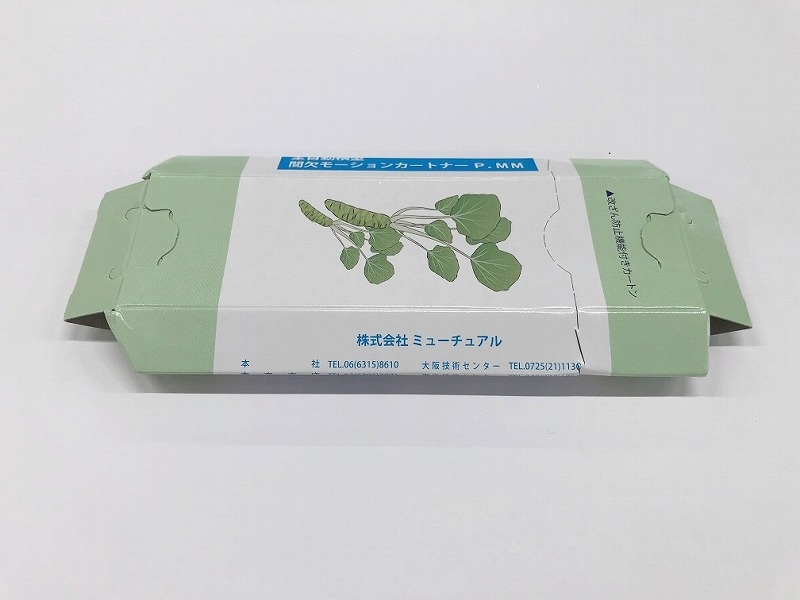

・Crush Function, Enables the carton to be easily collapsed after use.
・Environmental Sustainability, Adhesive-free sealing reduces energy consumption and supports eco-friendly packaging.
・Improved Productivity, Low maintenance requirements and reduced operating costs contribute to higher productivity.
Product specifications
| Applicable product | Pharmaceutical product, foodstuff, cosmetics, stationary, miscellaneous goods |
|---|---|
| Product style | Blister pack, tube, film roll, ampoule, bottle, other shapes of products |
| Speed | 25 to 120 strokes/min |
| Carton dimensions | Length 50 to 200 mm Width 15 to 90 mm Height 12 to 70 mm |
| Carton type | Aeroplane tuck-in, reverse tuck-in, four-flap closure |
| Option | Leaflet folding and insertion device, ink/emboss coder, product feeder, others |
| Machine dimensions | L2,275×W1,600×H1,975 mm |
| Machine weight | Approx. 1,400 kgs |
| Power supply | 200 V, 50/60 Hz, 1.94 kW（5.84 kW with hot-melt gluer applied） |
| Compressed air | 17 NL/min. |
