Formulation machineEmulsifying and dispersing machine

Ultra-high pressure emulsifying and dispersing system Systemizer

Nanoizing with great energy efficiency

  • Model：Systemizer
    • 　　
  • Manufacturer：System Support

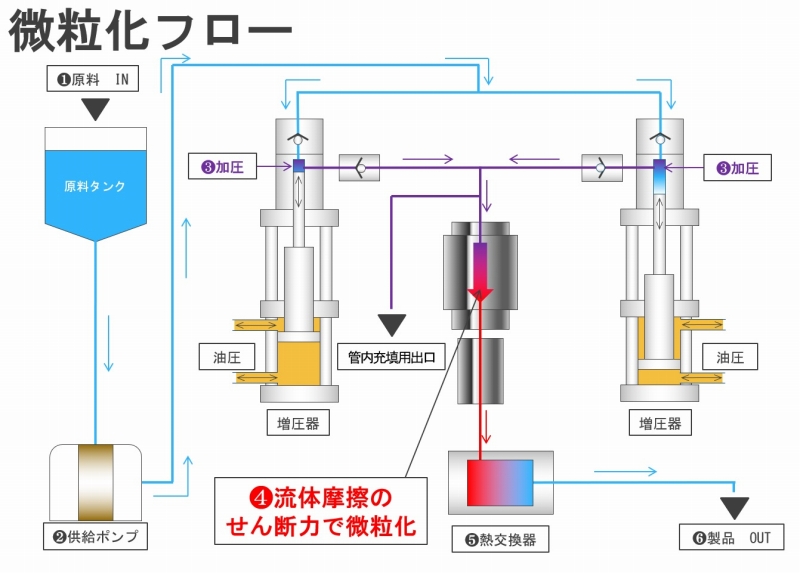

  • Flow of systemizer

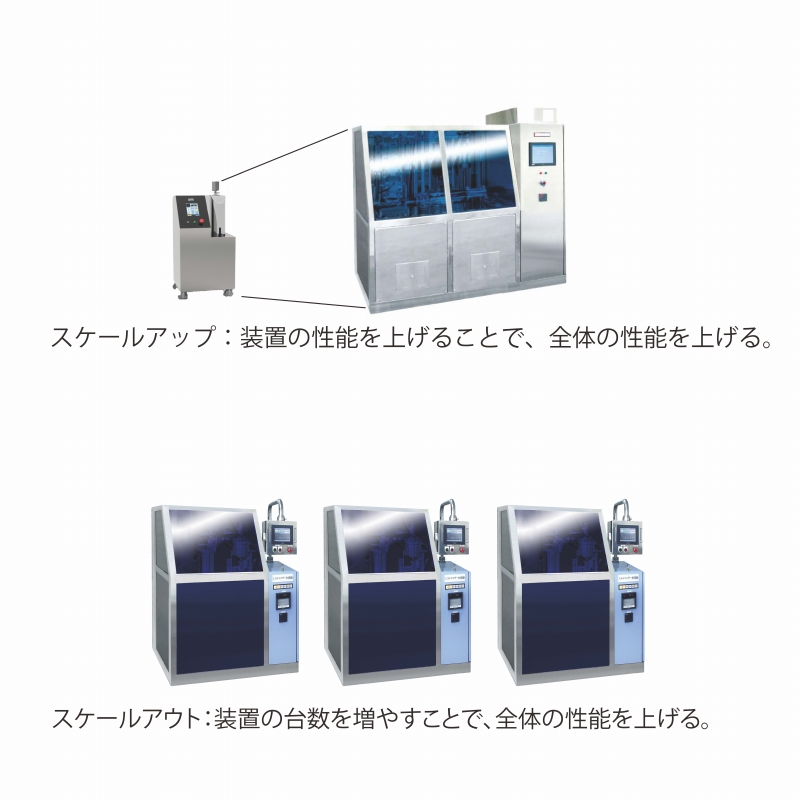

  • Example of installation

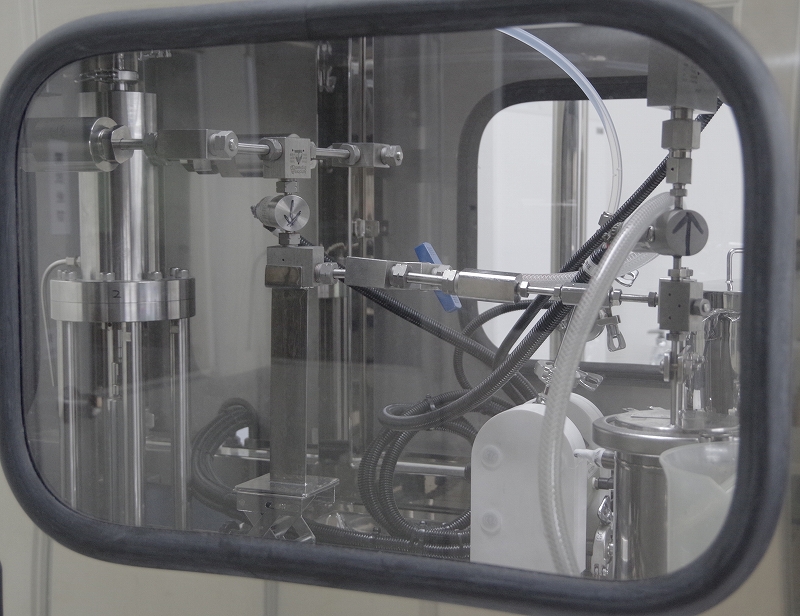

  • Machine interior

Advantage

・Ensured uniformity with minimum passes cycles

・Savings on consumables

・Validation support

・Wide variety of operation screens

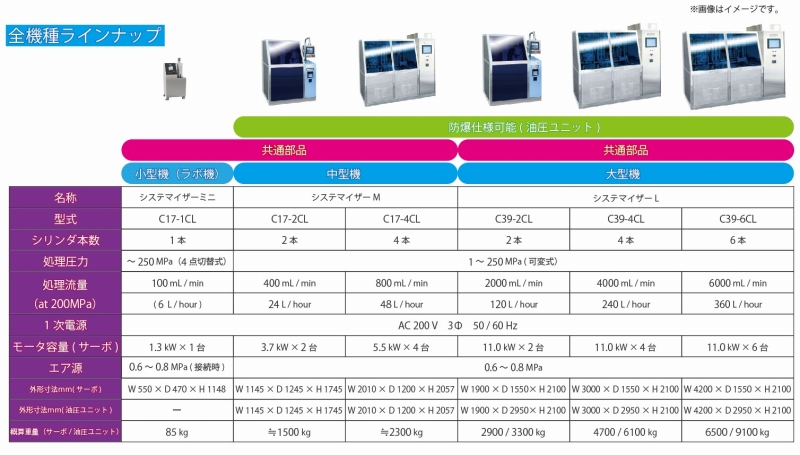

Specification

 Two-cylinder type Four-cylinder type
Examples of usage●Dispersion · Disintegration · Powder (solid / liquid)
Powder: inorganic, organic
Solvent: water, liquid agent
Dispersion: carbon, pigment, etc.
Disintegration: ceramic, metal powder, etc.
Crushing: metal powder etc.
●Emulsification (liquid or solid / liquid)
Solute: organic
Solvent: water
Emulsification: injectable product, liposome (cosmetic or pharmaceutical product)
Processable pressure50～250Mpa
Processable volume340～400ml/min（at 210Mpa）700～800ml/min（at 210Mpa）
Power inputAC200V、3φ、50/60Hz、15kva
Machine size1,145（D）×1,245（W）×1,745（H）mm1,200（D）×2,020（W）×2,060（H）mm
Machine weightApprox. 1,500kgsApprox. 2,300kgs
